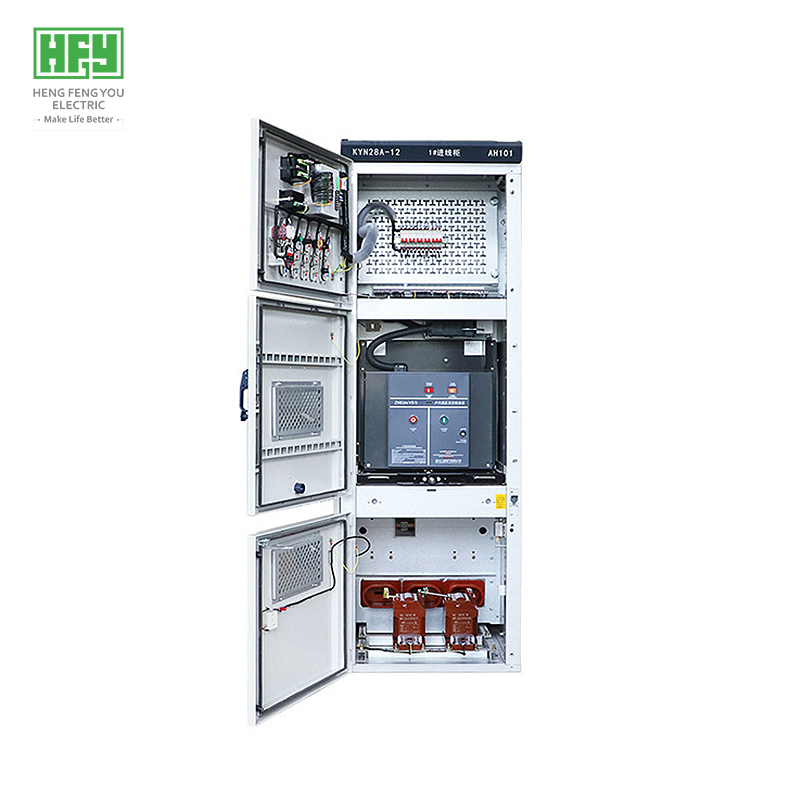

15 kv Metal Enclosed Switchgear overview
- 15KV medium voltage switchgear is suitable for 15 kv three-phase A - 50/60Hz power grid, for receiving and distributing electric energy, and for controlling, monitoring and protecting the circuit
- Rated AC frequency 50Hz/ 60Hz, maximum working voltage to 24kV, maximum working current to 4000A
- More than 50 countries and regions around the world run verification of high reliability
- Products are mainly sold 12598 sets to Uganda, Ethiopia, Rwanda and other African countries
- Mainly used in substations, power plants, power systems and industrial and mining enterprises substations received electricity, distribution, can also be used for frequent start of high-voltage motors, etc
- Meet many international standards: IEC60298, IEC6094, GB3906, DL404, DIN.VDE670, etc
15 kv Metal Enclosed Switchgear advantage
> Leading technology
- Standard anti-corrosion and salt spray environmental plan to meet the stringent environmental requirements of the site
- Strong versatility, can be configured domestic and foreign brands of circuit breakers, domestic series (VS1), Schneider HVX series, ABB VD4 series and so on
- It has the functions of "five prevention" (IP2X IP4X) to prevent the misoperation of circuit breaker, to prevent the push-pull trolley with load, to prevent the grounding switch from being turned off while charged, to prevent the grounding switch from sending power at the grounding position and to prevent the accidental entry of the charged interval.
> Cabinet put oneself in another's position
- The whole is composed of 2-3mm aluminum and zinc plates by multiple bending
- Laser numerical control equipment cutting, drilling, bending, to ensure the processing accuracy
- The exterior is coated with electrostatic epoxy powder, which will not take off paint for 50 years
> Functional units
- Various types of microcomputer integrated relay protection devices can be installed on the panel of relay chamber of this product
- Through CAN bus control with communication interface, intelligent control of the system CAN be realized (remote control, telemetry, remote signaling and remote tuning functions).
- The cabinet body is divided into four separate compartments, and the protection class of the outer shell is IP4X. When the door of each compartment and circuit breaker chamber is opened, the protection class is IP2X
- Heaters can be installed according to user requirements to prevent condensation and corrosion;
- All operations are carried out under the closed state of the cabinet door, with high protection level, which can prevent the intrusion of sundries and pests
> Busbar system
- High quality three-phase tin bus copper bar, high mechanical strength, good heat dissipation
> Processing and assembly
- Dust-free workshop to ensure insulation
- Assembly workers should be on duty with at least 6 months training
- The secondary connection is automatic terminal crimping machine to ensure reliable connection
- The bolts are reinforced with power tools to ensure proper torque
- The copper bus is CNC cutting, punching and bending to ensure the accuracy
- All kinds of experimental tests before leaving the factory to ensure the normal operation of the equipment
15 kv Metal Enclosed Switchgear parameters
Please contact our sales team:
sales@hfy-substation.com
Conditions of use
- The altitude above sea level shall not exceed 1000m
- The ambient air temperature should not be higher than +40 degrees, or less than -10 degrees
- Relative humidity: daily average no more than 95%, monthly average no more than 90%;
- Saturated vapor pressure: daily average not more than 2.2kPa, monthly average not more than 1.8kPa
- The inclination with the vertical plane is not more than 5°, and the whole group of cabinets is relatively flat, in line with (GBJ232-2) standard
- Requirements in the absence of violent vibration and impact, electrical components will not be corroded, no conductive dust plac
15 kv Metal Enclosed Switchgear Ordering instructions
> The customer shall provide the following information:
- Main circuit scheme diagram, secondary circuit system diagram and auxiliary circuit control mode
- Equipment layout drawing and distribution room layout drawing
15 kv Metal Enclosed Switchgear FAQ
What is the typical application of 15 kV metal-enclosed switchgear?
It is commonly used in industrial plants, utility substations, and commercial power distribution systems for medium-voltage power control and protection.
What standards does 15 kV metal-enclosed switchgear comply with?
It generally meets IEEE C37.20.2, ANSI, and IEC standards for design, testing, and safety.
What are the main components inside 15 kV switchgear?
Key components include circuit breakers, disconnect switches, current transformers (CTs), voltage transformers (VTs), protective relays, and busbars.
What insulation types are used in 15 kV switchgear?
Common insulation methods include air-insulated, gas-insulated (SF6), and solid-dielectric designs.
What are the standard ratings for 15 kV switchgear?
Typical ratings include 15 kV voltage class, 1200A or 2000A continuous current, and 25 kA or higher short-circuit withstand capability.
How is arc flash protection addressed in 15 kV metal-enclosed switchgear?
Modern designs incorporate arc-resistant construction (per IEEE C37.20.7) with pressure relief channels and reinforced enclosures.
What maintenance is required for 15 kV switchgear?
Regular inspections should include contact resistance tests, insulation checks, mechanical operation tests, and thermal imaging scans.
Can 15 kV switchgear be retrofitted with smart monitoring devices?
Yes, many designs allow integration of partial discharge sensors, temperature monitors, and digital relays for condition-based maintenance.
What safety features are included?
Standard features include mechanical interlocks, grounding switches, viewing windows, and padlocking provisions for LOTO safety.
What is the expected service life of 15 kV metal-enclosed switchgear?
With proper maintenance, the typical service life exceeds 30 years, though component replacements may be needed over time.
