Global Buying Guide for 66kV Oil-Immersed Power Transformers

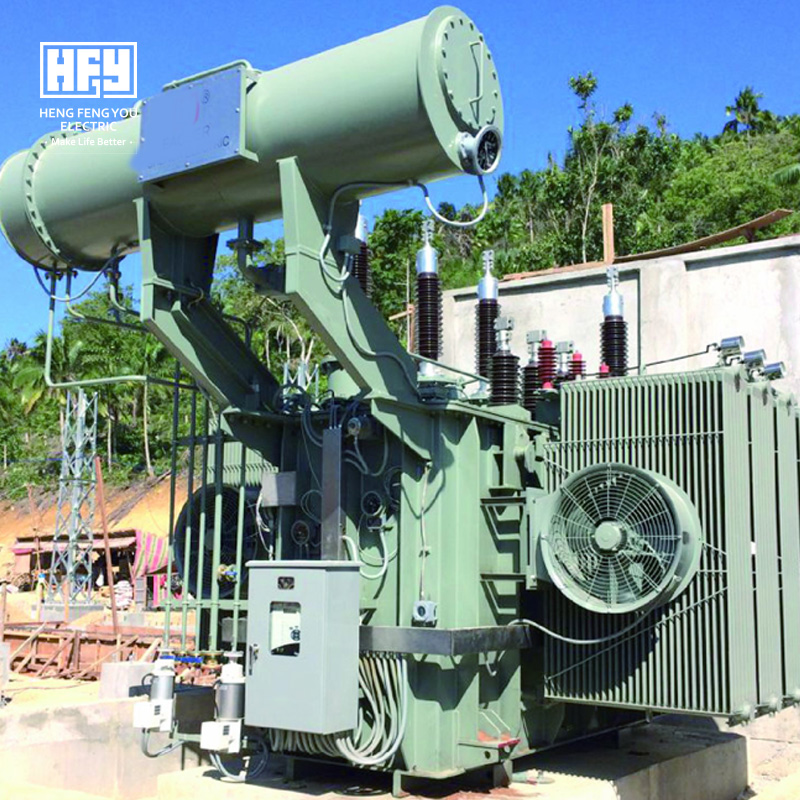

I. Introduction to 66kV Oil-Immersed Power Transformers
A 66kV oil-immersed power transformer is designed for systems with a rated voltage of 66kV and is widely used in power transmission, distribution networks, renewable energy integration, and industrial power supply systems.
These transformers are manufactured in accordance with international standards such as IEC 60076 and GB 1094. The typical capacity range is 3000kVA to 63000kVA, making them suitable for both medium-scale and large power applications.
66kV transformers are commonly installed in environments where grid conditions may be unstable or where load fluctuations are significant, such as:
-mining operations
-petrochemical and industrial parks
-offshore wind farms
-urban and regional substations
With reliable insulation structures and stable cooling systems, these transformers ensure safe and long-term operation in demanding environments.
II. 66kV Oil-Immersed Power Transformer Standards & Certification
1.Standards Supported
GB, IEC, GOST, EN, NF, ANSI/IEEE (customized according to project requirements)
2.Certifications
ISO, CE, IEC, SABS, COC, CSA, UL
3.Energy Efficiency
The operating efficiency of a 66kV transformer can exceed 98%, complying with energy-efficiency regulations in many countries.
4.Proven Project Experience
Our 66kV transformers have been applied in numerous global projects including grid upgrades, renewable energy integration, and photovoltaic booster stations. Long-term performance under complex operating conditions has been fully verified, with a design life exceeding 30 years.
5.Environmental Sustainability
Environmentally friendly insulating oils such as FR3 natural ester oil and recyclable materials are used to reduce environmental impact and support global carbon-reduction initiatives.
6.Production & Delivery Capacity
Standard delivery time: around 90 days
Fastest delivery: about 50 days
III. Types of 66kV Oil-Immersed Power Transformers
At HENGFENGYOU ELECTRIC, several structural types of 66kV transformers are available to meet different grid requirements.
Although these transformers operate based on the same electromagnetic principle, their structures and applications vary.
Common types include:
-66kV three-phase double-winding transformer
-66kV three-phase three-winding transformer
-66kV autotransformer
Each design is optimized for specific power system conditions. Our engineering team can recommend the most suitable configuration according to your project requirements.
Get 66kV Power Transformer Price
IV. 66kV Oil-Immersed Power Transformer Technical Specifications
Capacity Range
3000kVA – 63000kVA (dual-winding off-circuit tap changer type)
Voltage Combination
High-voltage side:
63kV / 66kV / 69kV ±5%
Low-voltage side:
6.3kV / 10.5kV / 11kV
Loss Index
No-load loss:
7.5kW (6300kVA) – 42kW (63000kVA)
Load loss:
34kW (6300kVA) – 210kW (63000kVA)
Short-circuit impedance
8% – 12%
(Customizable according to load characteristics)

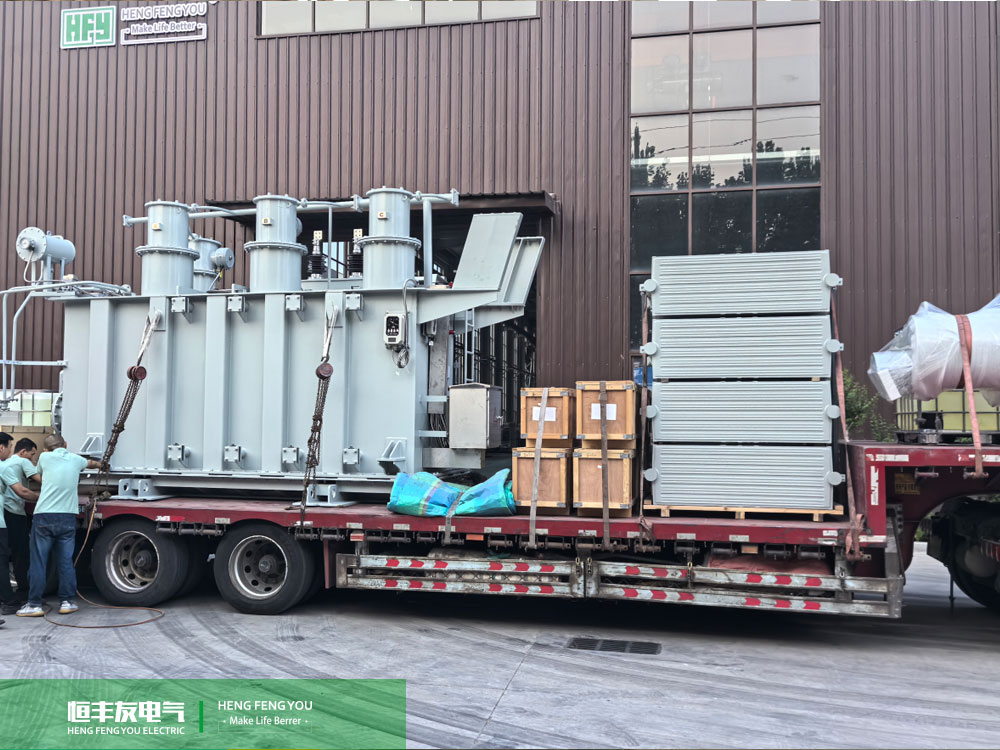

V. 66kV power transformer shipment
Grow Your Business with HENGFENGYOU ELECTRIC
Our mission is to become a globally trusted manufacturer of electrical equipment. Over the years, our technology, manufacturing experience, and project expertise have supported customers in more than 50 countries.
Many of our clients maintain long-term partnerships with us because Hengfengyou is committed to delivering reliable electrical equipment, stable quality, and professional service.
VI. 66kV Power Transformer FAQ
Q1: Where are 66kV transformers typically used?
66kV transformers are widely used in:
urban power grid substations
industrial park power distribution systems
renewable energy plants (wind farms and PV booster stations)
mining power supply systems
railway and rail transit power networks
They provide reliable medium-to-high voltage power conversion.
Q2: What is the no-load loss range of a 66kV oil-immersed transformer?
Depending on the transformer capacity, the no-load loss generally ranges from 0.36kW to around 41.6kW. High-quality silicon steel cores can further reduce energy losses by 5%–15%.
Q3: Can a 66kV transformer operate in extremely cold environments?
Yes. Many 66kV transformers are designed to operate within a temperature range of −45℃ to +40℃. Special insulating oils and low-temperature structural designs ensure stable operation in cold regions.
Q4: How is the short-circuit impedance selected?
Typical short-circuit impedance values range from 8% to 12%. The exact value should be selected according to grid short-circuit capacity and load characteristics. For example, 12% impedance transformers are suitable for industrial systems with high short-circuit current levels.
Q5: What voltage regulation methods are available?
66kV transformers generally support two regulation methods:
Off-Circuit Tap Changer
±5% voltage adjustment (requires power outage)
On-Load Tap Changer (OLTC)
±8 × 1.25% dynamic adjustment suitable for fluctuating load conditions.
Q6: How is transportation safety ensured?
During transportation:
transformers are fixed using steel wire ropes
the oil tank is filled with nitrogen protection gas (0.01–0.03MPa)
land transportation speed is limited to ≤ 50km/h
marine transport should avoid severe salt-spray environments
Q7: Does insulation oil need to be replaced regularly?
Fully sealed transformers typically support maintenance-free operation for up to 30 years. For conventional transformers, oil quality testing is recommended every 5 years.
Q8: Are 66kV transformers suitable for renewable energy projects?
Yes. They are commonly used in wind and photovoltaic power stations and can be equipped with OLTC systems and intelligent temperature monitoring to handle fluctuating generation loads.
Q9: What foundation requirements are needed for installation?
Foundation load-bearing capacity ≥ 1.2 times equipment weight
Level deviation ≤ 2mm/m
Outdoor installations require firewalls and oil collection pits.
Q10: Can transformers operate at high altitudes?
For installations above 3000 meters, customized designs are recommended. Capacity reduction and enhanced insulation are typically applied to ensure safe operation.
Q11: What is the noise level?
Typical no-load noise level is ≤65dB(A) (for a 63MVA transformer), meeting IEC 60076-10 standards. Optional soundproof enclosures can reduce noise to below 55dB(A).
Q12: What after-sales services are provided?
Warranty: 18 months after shipment or 12 months after commissioning
Technical support: remote monitoring, fault diagnosis, and on-site service (response time ≤ 72 hours)
