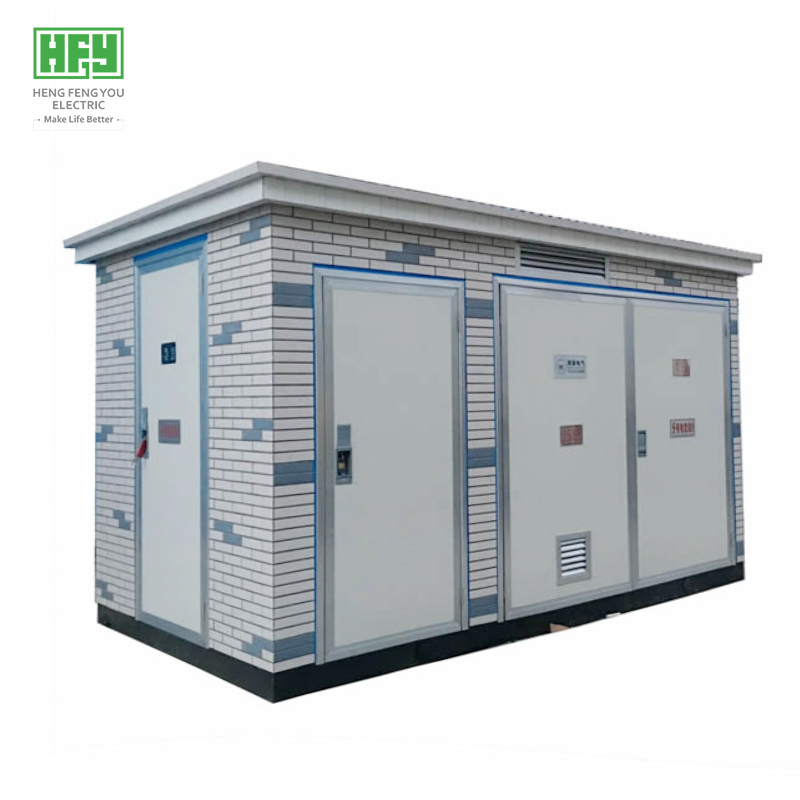

11kV/10kV Compact Package Substation for Urban Distribution

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF

Min. Order:

1 Set/Sets

Delivery Time:

30 Days

Transportation:

Ocean,Land,Air

Contact Now

Chat Now

Product Description

Product Attributes
Product Feature
Product description

< >

Overview

Product Attributes

Model No.: ZBW/YB-12 Series

Brand: HENGFENGYOU

Application: Power distribution

Phase: Three

Rated Voltage: 10kV / 11kV / 12kV

Rated current: 630A (HV) / Up to 2500A (LV side)

Frequency: 50Hz

Degree of protection: IP54 / IP55 / IP65

Standard: IEC60076

Certificate: CE, CCC, KEMA，ISO9001

Shell Material: Steel

Origin: China

Packaging: Plywood

Delivery Time: 30 Days

Product Feature

Product description

I. Selection and Configuration Guide
The 11kV/10kV Package Substation is the most versatile solution for secondary distribution. Engineered for urban infrastructure, commercial complexes, and residential areas, it prioritizes a small footprint and aesthetic integration without compromising on electrical safety.

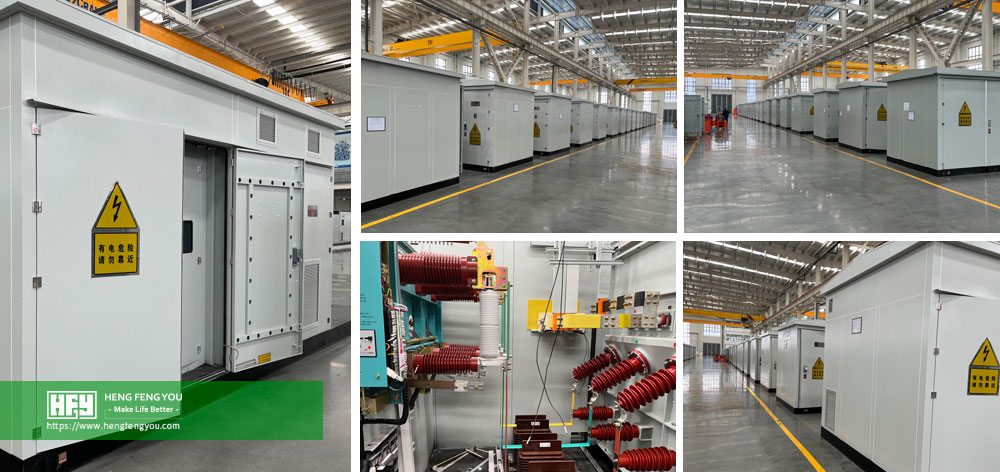

1. Design and Structural Layout
Compact Architecture: A typical unit integrates HV ring main units (RMU), a distribution transformer, and an LV distribution board into a single, pre-wired enclosure.
Smart Secondary Distribution: Optimized for Ring Main or Radial configurations, ensuring high power reliability for dense urban grids.
Transformer Options: Features high-efficiency oil-immersed or cast resin dry-type transformers, typically ranging from 200kVA to 1600kVA.
2. Efficiency and Global Standards
High Efficiency: Designed to meet the latest energy-saving standards (e.g., IEC 60076 Tier 2), reducing no-load and load losses to minimize operational costs for utility providers.
Standard Compliance: Fully compliant with IEC 62271-202 (High-voltage/low-voltage prefabricated substations), ensuring safety for both operators and the general public.
Global Adaptability: Engineered to meet IEC, EN, SABS, and SASO requirements for international markets.
3. Urban & Residential Adaptation
Small Footprint: Its ultra-compact design allows for installation in narrow alleyways, parking lots, or basement corners, saving valuable real estate.
Low Noise & Low Radiation: Optimized cooling and insulation materials ensure the unit operates quietly, making it ideal for residential neighborhoods.
Aesthetic Customization: Enclosures can be customized with various finishes (e.g., landscape-style cement, wood-grain, or specific colors) to blend seamlessly with urban environments.

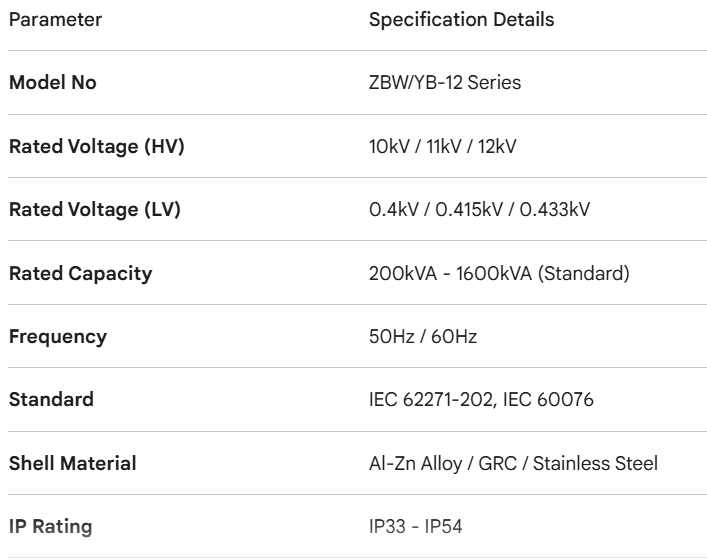

4. 11kV/10kV Package Substation Technical Table

II. Design and Installation Guidelines
1. Plug-and-Play Integration
Our 11kV package substations are fully pre-assembled and factory-tested. All internal wiring between the HV switchgear, transformer, and LV panels is completed before shipping.
2. Rapid Deployment
Minimal Civil Works: Requires only a simple concrete foundation or a pre-cast base.
Quick Commissioning: Once on-site, only the external HV and LV cables need to be connected, reducing installation time by over 70% compared to traditional masonry substations.
III. Commissioning and O&M (Operation & Maintenance)
1. Simplified Maintenance
Easy Access: Designed with front and rear doors for convenient access to all equipment.
Safe Operation: Features comprehensive mechanical interlocks and an internal lighting system for safe nighttime inspections.
2. Intelligent Ready
Smart Grid Compatibility: Can be equipped with remote terminal units (RTU) for real-time monitoring of load, power quality, and fault detection via a central SCADA system.

IV. Summary
The 11kV/10kV Package Substation is the ideal "workhorse" for modern urban power grids. By combining a compact footprint with Plug-and-Play convenience, HENGFENGYOU provides a reliable, cost-effective, and aesthetically pleasing solution for residential, commercial, and light industrial distribution.
V. FAQ for 11kV/10kV Package Substation
1. What is the delivery time for a standard 11kV substation? Standard configurations can typically be manufactured and shipped within 30 days.
2. Can it be installed in extreme climates? Yes. With optional climate control (forced ventilation and heaters), our substations operate reliably from -25°C to +45°C.
3. Is it safe for public areas? Absolutely. The enclosure is vandal-proof, earthed for safety, and designed with internal arc protection to ensure public safety in high-traffic areas.
4. Can I customize the LV outgoing circuits? Yes, the LV section is highly modular. We can configure the number of outgoing feeders and include specific metering or MCCB requirements as per your project needs.
