35kV Vehicle Mounted Mobile Power Substation Global Procurement Guide
【High-Performance Mobile Solutions for Grid Modernization】
I. 35kv Mobile Substation Overview
The 35kV series vehicle-mounted mobile power substation engineered by Hengfengyou is a premier integrated power solution designed for high-voltage distribution networks. This "all-in-one" system expertly combines primary and secondary electrical components onto a heavy-duty, high-stability chassis. It features a high-efficiency 35kV power transformer, reliable incoming/outgoing switchgear, and intelligent systems for relay protection, communication, and auxiliary power. Fully customizable, it is engineered to meet the most demanding global utility standards.
As the global energy landscape shifts toward flexibility, our 35kV mobile units provide a rapid, versatile alternative to traditional stationary infrastructure. They are the ideal choice for quick power injection and grid reinforcement in any terrain.
Proven Global Presence: Our 35kV units are currently supporting vital power grids in countries such as Nigeria, Ethiopia, Uzbekistan, Kazakhstan, UAE, Saudi Arabia, USA, and Brazil.
Core Applications: Emergency grid restoration, temporary bypass during substation maintenance, fast-track power for mining/industrial sites, and rapid infrastructure support for new energy projects.
II. 35kv Mobile Substation Advantage
Industry Expertise: Over 15 years of dedicated R&D and international manufacturing experience in high-voltage mobile equipment.
Robust Supply Chain: With an annual production capacity of over 120 units for 35kV-class systems, we ensure timely delivery for large-scale projects.
Field-Tested Reliability: Our 35kV mobile transformers are designed to maintain peak performance in extreme environments, from high-temperature deserts to high-humidity coastal regions.
Precision Chassis Engineering: Utilizing Finite Element Analysis (FEA), we calculate chassis strength to ensure the absolute safety of electrical components during high-speed road transit.
Optimized Weight Distribution: The system layout is meticulously balanced to provide a low center of gravity, ensuring safe and stable transportation.
Environmental Resilience: Enhanced protection against high humidity, heavy salt spray, and abrasive sandstorms.

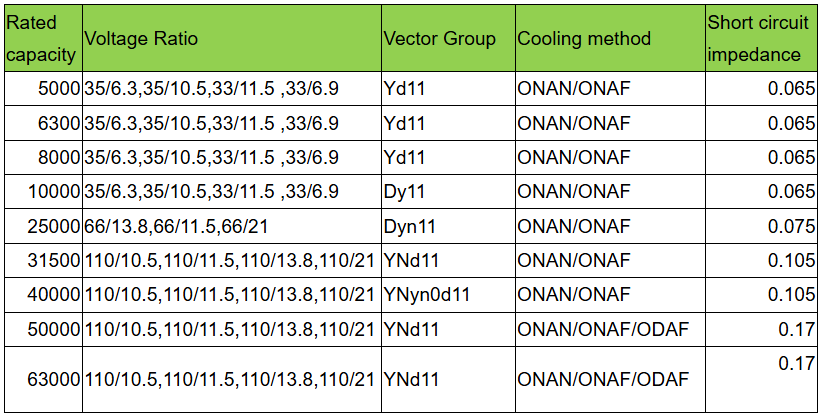

III. 35kv Mobile Substation Technical Specification
Rated Primary Voltage: 35kV
Output Voltage: 6.3kV / 6.9kV / 10.5kV / 11.5kV / 15.75kV / 21kV (Fully Customizable)
Rated Capacity: 5MVA - 63MVA (5000kVA - 63000kVA)
Standard Compliance: IEC 60076, IEC 62271
Cooling Method: ONAN / ONAF

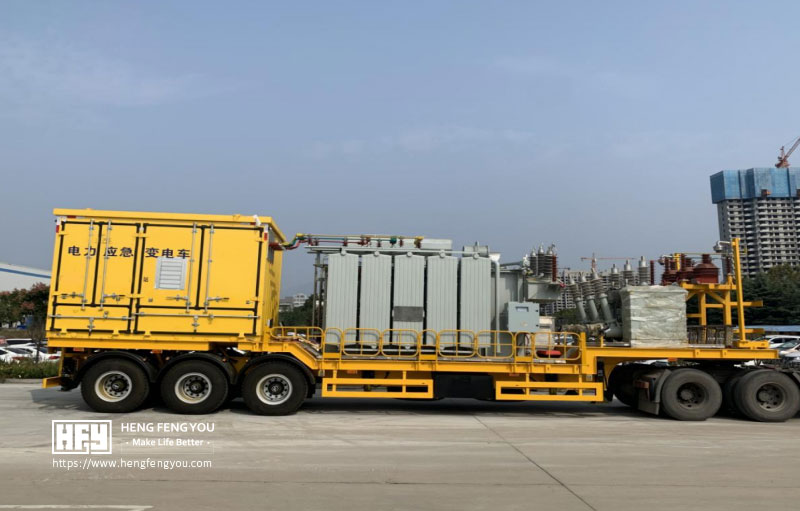

IV. 35kv Mobile Substation Case
Grow Business with Hengfengyou
Our goal is to be a world-leading manufacturer of professional electrical equipment. The wealth of technology and project experience we have accumulated over the years has benefited customers in more than 50 countries. We focus on building long-term, trusted relationships by consistently delivering high-performance products and dedicated technical support.
V. 35kv Mobile Substation FAQ
Q1: What are the core components of a 35kV vehicle mounted mobile substation?
Our 35kV units consist of a 35kV GIS/HGIS high-voltage switchgear, a specialized mobile power transformer, intelligent protection and control cabinets, fire suppression systems, and a heavy-duty modular trailer or container carrier.
Q2: What are the typical application scenarios for 35kV mobile substations?
They are widely used for load transfer during urban grid renovations, providing temporary power for large-scale industrial or metallurgical projects, rapid power reconstruction following natural disasters (within 72 hours), and supporting infrastructure for Belt and Road international projects.
Q3: What are the advantages of 35kV mobile substations compared to fixed substations?
Mobile substations offer significantly faster deployment, taking only 3 to 7 days compared to the 12 to 24 months required for fixed sites. Financially, they require a much lower initial investment—typically between RMB 8-20 million, whereas fixed substations can exceed RMB 50 million. Additionally, mobile units require minimal land prep and no permanent land acquisition, and they boast a high reuse rate, allowing them to be redeployed at multiple different locations over their lifespan.
Q4: What are the special requirements for the transportation and deployment of 35kV mobile units?
Transportation requires hydraulic axle trucks with a total weight capacity of up to 80 t. All equipment complies with ISO 1496 international freight standards. For deployment, the site foundation must have a bearing capacity of ≥ 150kPa and an inclination of less than 0.5 degrees.
Q5: How long does it take to put a 35kV mobile substation into operation?
Under regular conditions, deployment including debugging takes 3 to 7 days. In urgent emergency modes, the unit can be operational in as little as 48 hours, provided it has been pre-installed and debugged.
Q6: What are the functions of the 35kV intelligent monitoring system?
The system provides real-time monitoring including DGA online oil chromatography and hot-spot temperature alerts (accuracy ± 1℃). It fully supports IEC61850 communication protocols for remote access and integrates seamlessly with standard SCADA systems.
