132kV Vehicle Mounted Mobile Power Substation Global Procurement Guide
【Flexible and Efficient Power Emergency Solutions】

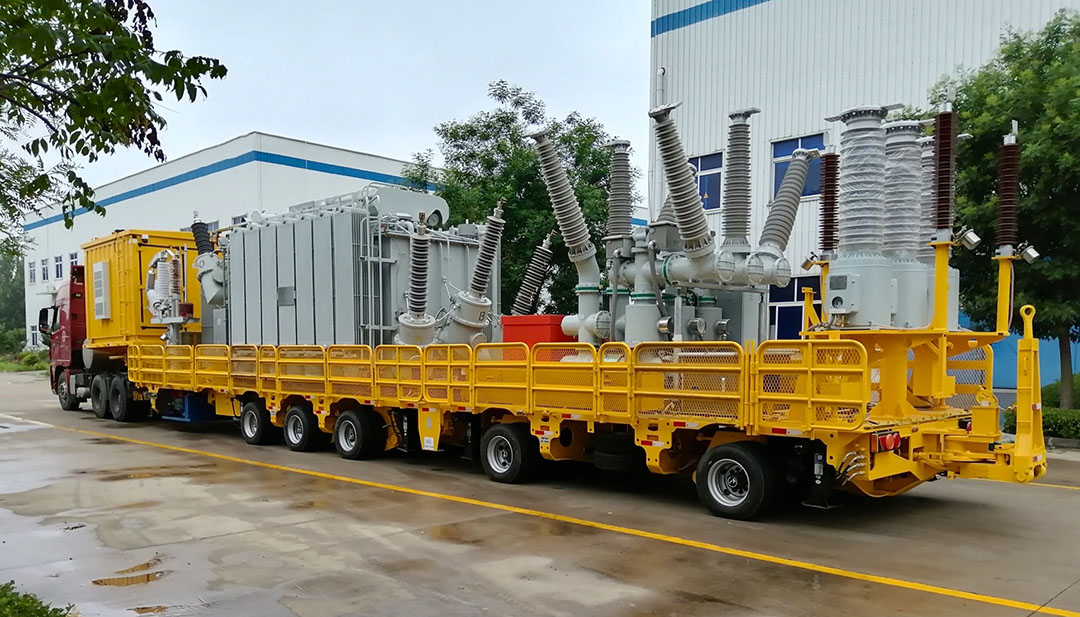

I. 132kv Mobile Substation Overview
The 132kV series vehicle-mounted mobile power substation developed by Hengfengyou is an advanced integrated solution that combines primary and secondary electrical components onto a heavy-duty load-bearing chassis. This unit seamlessly integrates high/low voltage switchgear, high-efficiency power transformers, and intelligent systems for protection, communication, and auxiliary power. It offers a complete "Substation-on-Wheels" experience, fully customizable to meet diverse global engineering standards.
With the increasing global demand for rapid emergency response, the deployment of mobile substations is growing significantly. These units provide a versatile alternative to traditional power infrastructure, offering broad market prospects for modern grid modernization.
Proven Global Presence: Our mobile units have been successfully exported to South Africa, Tanzania, Uzbekistan, Kazakhstan, UAE, Saudi Arabia, USA, Mexico, Brazil, and many other regions.
Core Applications: Natural disaster emergency repair, substation maintenance/upgrading, temporary engineering power supply, and grid reinforcement.
II. 132kv Mobile Substation Advantage
Expertise: 15 years of independent R&D and international sales experience in the power industry.
Robust Capacity: Annual production of 30 units for systems up to 132kV and 120 units for systems under 35kV.
Reliability: Our 132kV mobile transformers are extensively field-validated for stable performance in extreme environments.
Engineered Safety: The vehicle chassis utilizes finite element analysis (FEA) for strength calculations, ensuring the safety of all installed electrical components.
Optimized Layout: Precise weight distribution and load balancing ensure stability and equipment integrity during long-distance transportation.
Environmental Resilience: Designed to withstand high humidity, heavy salt spray, high temperatures, and sandstorms.

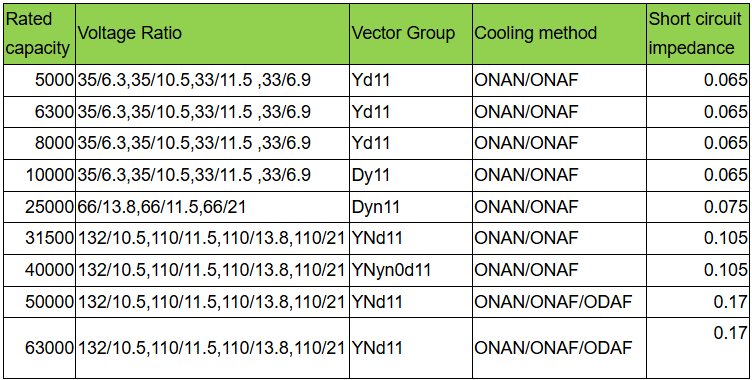

III. 132kv Mobile Substation Technical Specification
Rated Voltage: 132kV
Output Voltage: 6.3kV / 10.5kV / 11.5kV / 15.75kV / 21kV / 33kV (Customizable)
Rated Capacity: 10MVA - 63MVA (Up to 100MVA)
Customization: Fully tailored solutions based on specific user requirements.
IV. 132kv Mobile Substation Case

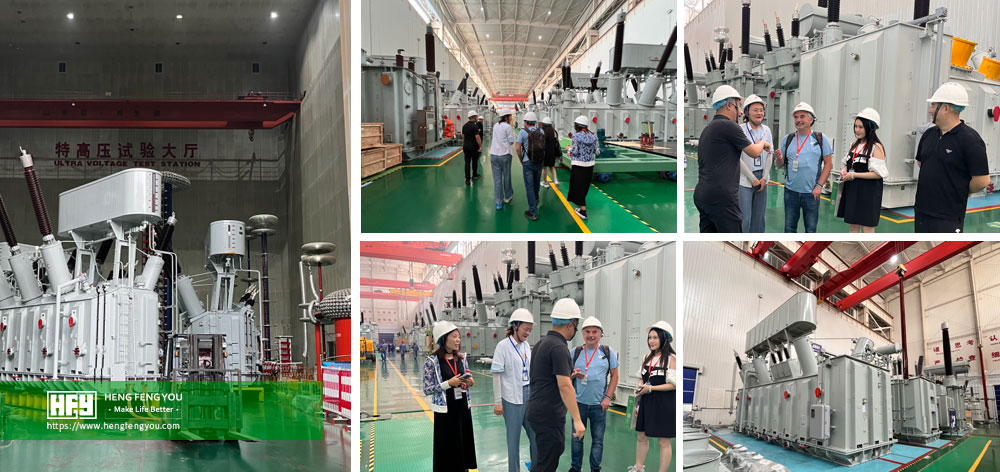

Grow business with Hengfengyou
Our goal is to become the world's leading manufacturer of electrical equipment. The business, experience and technology accumulated over the years have benefited customers in more than 50 countries around the world. Once our customers establish a cooperative relationship, they are long-term trusted customers, because Hengfengyou always insists on providing you with our best electrical products and services.
V. 132kv Mobile Substation FAQ
Q1: What are the core components of a 132kV vehicle mounted mobile substation?
High voltage unit: 132kV GIS/HGIS switchgear
Auxiliary systems: intelligent protection control cabinet, fire protection system, temperature control device
Structural carrier: heavy-duty semi-trailer or modular container group
Q2: What are the typical application scenarios of 132kV mobile substations?
Urban power grid: load transfer during substation renovation
Industrial application: Temporary power supply for large-scale petrochemical/metallurgical projects
Disaster relief: rapid reconstruction of power grid after earthquakes and floods (72 hour emergency response)
Overseas projects: power infrastructure construction projects in countries along the Belt and Road
Q3: What are the advantages of 132kV mobile substations compared to fixed substations?
| Comparison Dimension |
Vehicle mounted Mobile |
Traditional Fixed |
| Deployment time |
7-14 days |
18-36 months |
| Investment cost |
Significantly Lower |
High Civil & Land Costs |
| Land demand |
Minimal Footprint |
Permanent land acquisition required |
| Reuse rate |
Can be recycled 5-8 times |
Fixed and immovable |
Q4: What are the special requirements for the transportation and deployment of 132kV mobile substations?
Highway transportation: Multi-axle hydraulic modular trailers are required (due to the weight of 132kV equipment)
Shipping standard: Components comply with international shipping standards for heavy cargo
Positioning requirements: Foundation bearing capacity ≥ 150kPa, inclination < 0.5°
Q5: How long does it take for a 132kV mobile substation to be transported and put into operation?
Regular deployment: 7-14 days (including site preparation and debugging)
Emergency mode: Can be accelerated based on pre-installed modular configurations.
Q6: Function of intelligent monitoring system for 132kV mobile substation
Real time monitoring: DGA online oil chromatography analysis
Warning function: Hot spot temperature over limit alarm (accuracy ± 1 ℃)
Remote access: Supports IEC61850 communication protocol
Standard SCADA system
