220kV Vehicle Mounted Mobile Power Substation Global Procurement Guide
【Flexible and Efficient Power Emergency Solutions】
I. 220kv Mobile Substation Overview
The 220kV series vehicle-mounted mobile power substation developed by Hengfengyou is a flagship integrated solution designed for high-capacity transmission networks. This unit seamlessly integrates 220kV high-voltage switchgear, high-efficiency power transformers, and intelligent systems for protection and communication onto a specialized heavy-duty chassis. It offers a complete "Substation-on-Wheels" experience, engineered to meet the most demanding global grid standards.
As global energy infrastructure modernizes, our 220kV units provide a strategic alternative to permanent substations, offering rapid deployment capabilities for large-scale grid requirements.
Proven Global Presence: Our mobile units have been successfully exported to South Africa, Tanzania, Uzbekistan, Kazakhstan, UAE, Saudi Arabia, USA, Mexico, Brazil, and many other regions.
Core Applications: Extra-high voltage (EHV) grid emergency repair, substation upgrading, massive industrial power loads, and regional grid reinforcement.
II. 220kv Mobile Substation Advantage
Expertise: 15 years of independent R&D and international sales experience in the ultra-high voltage power industry.
Robust Capacity: Annual production of 30 units for systems up to 220kV and 120 units for systems under 35kV.
Reliability: Our 220kV mobile transformers are field-validated for stable performance under peak load in extreme environments.
Engineered Safety: The chassis utilizes advanced finite element analysis (FEA) to ensure structural integrity while carrying heavy 220kV components.
Optimized Layout: Specialized weight distribution systems ensure stability during the transportation of high-tonnage equipment.
Environmental Resilience: Designed to withstand high humidity, heavy salt spray, high temperatures, and intense sandstorms.

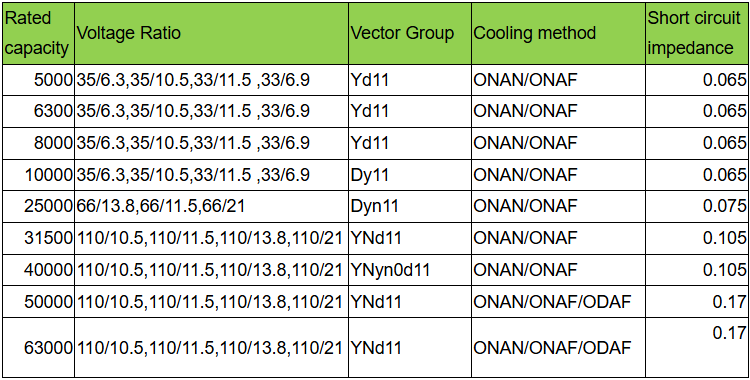

III. 220kv Mobile Substation Technical Specification
Rated Voltage: 220kV
Output Voltage: 11kV / 33kV / 66kV / 110kV / 132kV (Customizable)
Rated Capacity: 31.5MVA - 120MVA (Customizable)
Customization: Modular multi-trailer configurations tailored to specific site requirements.

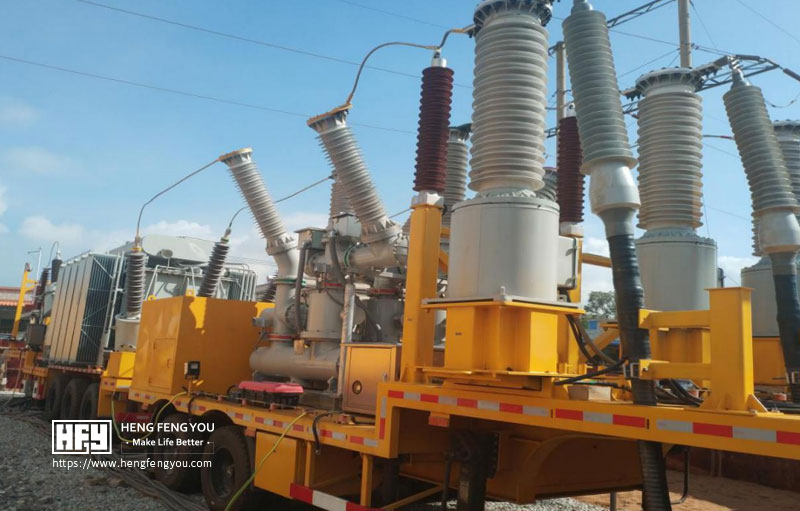

IV. 220kv Mobile Substation Case
Grow business with Hengfengyou
Our goal is to become the world's leading manufacturer of electrical equipment. With technology benefited by customers in more than 50 countries, we insist on providing the best electrical products and services for long-term cooperative success.
V. 220kv Mobile Substation FAQ
Q1: What are the core components of a 220kV vehicle mounted mobile substation?
High voltage unit: 220kV GIS (Gas Insulated Switchgear)
Auxiliary systems: intelligent protection control cabinet, fire protection, and redundant cooling systems
Structural carrier: Multi-module hydraulic trailers (Goldhofer-compatible design)
Q2: What are the typical application scenarios of 220kV mobile substations?
National Grid: Temporary bypass during 220kV substation major maintenance
Large-scale Energy: Power supply for mega-scale mining or petrochemical hubs
Disaster Relief: High-capacity power restoration for provincial-level grid nodes
Overseas Projects: Fast-track infrastructure for "Belt and Road" energy projects
Q3: What are the advantages of 220kV mobile substations compared to fixed substations?
The 220kV mobile substation offers significant advantages over traditional fixed infrastructure in four key areas:
Speed of Deployment: While a traditional fixed substation takes 24 to 48 months to complete, our mobile units can be operational in just 15 to 30 days.
Investment Efficiency: It eliminates the massive civil engineering and land acquisition costs associated with permanent structures, making it a more cost-effective choice for short-to-medium-term needs.
Flexible Land Use: Unlike fixed sites that require permanent land rights, mobile units occupy a minimal temporary footprint and can be moved once the project is finished.
Asset Mobility: Our mobile units are 100% relocatable and can be reused for 5 to 8 different projects, whereas a traditional substation is a sunken cost that cannot be moved.
Q4: What are the special requirements for the transportation and deployment of 220kV mobile substations?
Highway transportation: Specialized heavy-haulage permits and hydraulic axle trailers are mandatory due to weight and height.
Shipping standard: Specialized Break-Bulk or Flat Rack shipping for ultra-heavy modules.
Positioning requirements: Foundation bearing capacity ≥ 200kPa, inclination < 0.5°.
Q5: How long does it take for a 220kV mobile substation to be put into operation?
Regular deployment: 15-30 days (including assembly of modular units and HV testing).
Emergency mode: Pre-configured modular sets can significantly reduce onsite assembly time.
Q6: Function of intelligent monitoring system for 220kV mobile substation
Real time monitoring: Advanced DGA (Dissolved Gas Analysis) and partial discharge monitoring.
Warning function: Multi-point hot spot temperature limit alarms.
Remote access: Full IEC61850 and SCADA integration.
