110kV Vehicle Mounted Mobile Power Substation Global Procurement Guide
【High-Voltage Rapid-Response Grid Solutions】

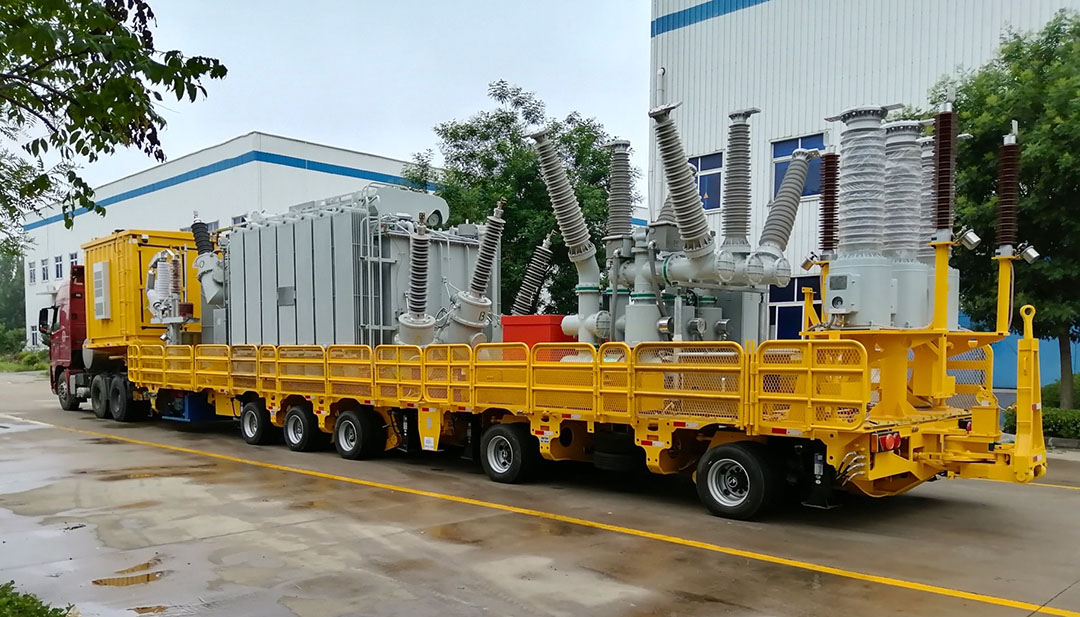

I. 110kV Mobile Substation Overview
The 110kV series vehicle-mounted mobile power substation developed by Hengfengyou is an ultra-reliable, high-capacity integrated solution designed for high-voltage transmission networks. This sophisticated system integrates 110kV GIS/HGIS switchgear, high-capacity power transformers, and advanced secondary protection systems onto a specialized multi-axle heavy-duty chassis.
Engineered to function as a complete high-voltage substation on wheels, this unit is indispensable for modern grid management where speed and flexibility are paramount. It is fully customizable to meet diverse international engineering standards, providing a seamless power bridge for regional grids.
Proven Global Presence: Our 110kV units are trusted by utility providers in regions including Central Asia, the Middle East, Africa, and South America.
Core Applications: Major grid emergency repairs, bypass solutions during 110kV substation upgrades, and temporary power for large-scale energy or infrastructure projects.
II. 110kV Mobile Substation Advantage
Engineering Expertise: Leveraging 15 years of R&D in high-voltage mobile equipment to ensure maximum operational safety.
Production Strength: Specialized manufacturing lines capable of delivering units up to 132kV with industry-leading lead times.
Validated Performance: Our 110kV mobile transformers are extensively field-validated for continuous operation in extreme climates.
Structural Integrity: Every multi-axle chassis undergoes Finite Element Analysis (FEA) to guarantee stability during the transport of massive high-voltage components.
Intelligent Integration: Precise layout and load balancing ensure the equipment remains calibrated and secure across long-distance transit.
Weather-Hardened Design: Built to resist high humidity, heavy salt spray, and desert sandstorms.

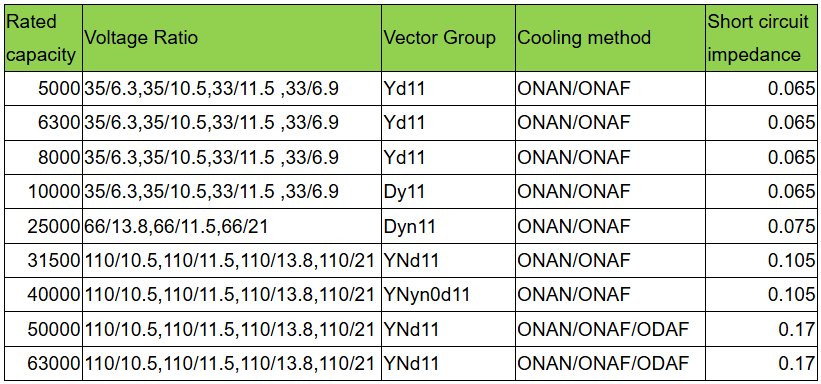

III. 110kV Mobile Substation Technical Specification
Rated Primary Voltage: 110kV (Compatible with 115kV/132kV variants).
Output Voltage: 10.5kV / 11.5kV / 13.8kV / 21kV / 33kV (Fully Customizable).
Rated Capacity: 31.5MVA - 63MVA (Up to 63000kVA).
Standard Compliance: IEC 60076, IEC 62271.
Cooling Method: ONAF / ODAF (Forced Air / Forced Oil).
IV. 110kV Mobile Substation Case
Grow Business with Hengfengyou
We strive to be the world's leading manufacturer of high-voltage electrical equipment. Serving over 50 countries, Hengfengyou combines decades of experience with cutting-edge technology to provide our partners with superior electrical services. Our 110kV mobile units are engineered for those who demand the highest standards in power reliability and rapid deployment.
V. 110kV Mobile Substation FAQ
Q1: What are the core components of a 110kV vehicle mounted mobile substation?
Key units include 110kV GIS/HGIS switchgear, a specialized 110kV high-capacity transformer, intelligent protection cabinets, and a heavy-duty hydraulic multi-axle trailer.
Q2: What are the typical application scenarios for 110kV mobile substations?
They are used for load transfer during high-voltage grid maintenance, disaster relief for national power grids, and providing temporary power for petrochemical or metallurgical megaprojects.
Q3: What are the advantages of 110kV mobile substations compared to fixed substations?
Mobile units offer a deployment time of 3 to 7 days versus 12 to 24 months for fixed sites. They require significantly lower investment (approx. RMB 8-20 million vs RMB 50 million+) and occupy minimal temporary land. They are also highly reusable and can be redeployed multiple times.
Q4: What are the special requirements for transportation and deployment?
Requires hydraulic multi-axle trucks capable of supporting total weights up to 80t. Site foundations must support ≥ 150kPa with an inclination of less than 0.5 degrees.
Q5: How long does it take for a 110kV unit to be put into operation?
Standard deployment takes 3 to 7 days, but emergency mode can achieve power-on within 48 hours for pre-tested units.
Q6: Does the system support remote monitoring?
Yes, it features real-time DGA oil analysis and SCADA integration via the IEC61850 protocol for remote management and alarm functions.
